Ball cock for fuel gas with safety opening device

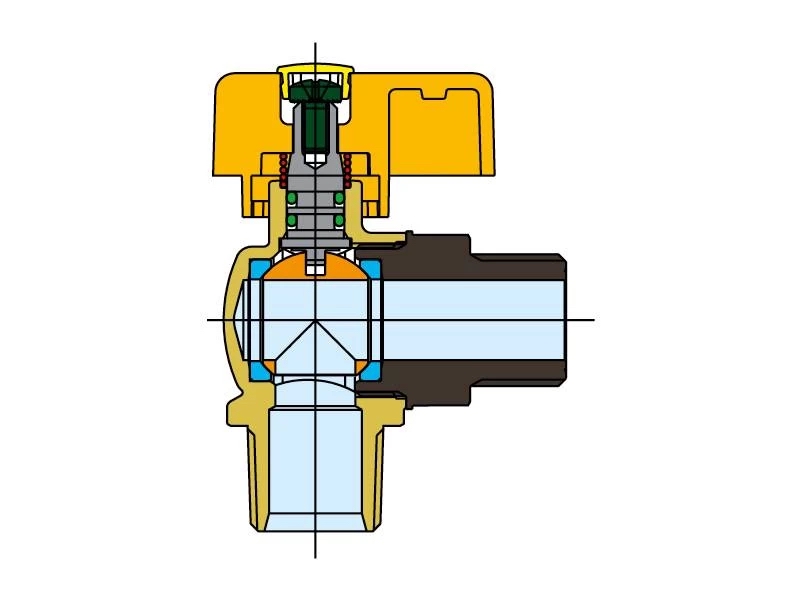

1

BODY

CW 617 N UNI EN 12165

FORGED, NICKEL-PLATED

2

END ADAPTER

CW 617 N UNI EN 12165

FORGED, NICKEL-PLATED

3

BALL

CW 614 N UNI EN 12164

MACHINED, CHROME-PLATED

4

BALL GASKETS

P.T.F.E.

PURE

5

STEM

CW 614 N UNI EN 12164

MACHINED

6

O-RINGS

ELASTOMER

SUITABLE FOR USE WITH GAS EN549

7

SPRING

STAINLESS STEEL AISI 302

NORMALIZED

8

LEVER HANDLE

ALUMINIUM

PAINTED

9

SCREW

8G STEEL

ZINC-PLATED

10

PLUG

PLASTIC

FORGED

CHARACTERISTICS

The SECURO ball cocks meet the requirements contained in the EN 331 standards on the safe use of fuel gas.
The opening procedure is effected through a pressure and rotation at 90° of the lever handle.
The bore is 75% of the hose.

END CONNECTIONS

Screwed to UNI EN 10226 and UNI ISO 228.

USES

Fuel gas:

• town gas (1st family)
• natural gas (2nd family)
• L.P.G. gas (3rd family)

The SECURO ball valves are also suitable for hot and cold water, compressed air, oils and hydrocarbons in general.

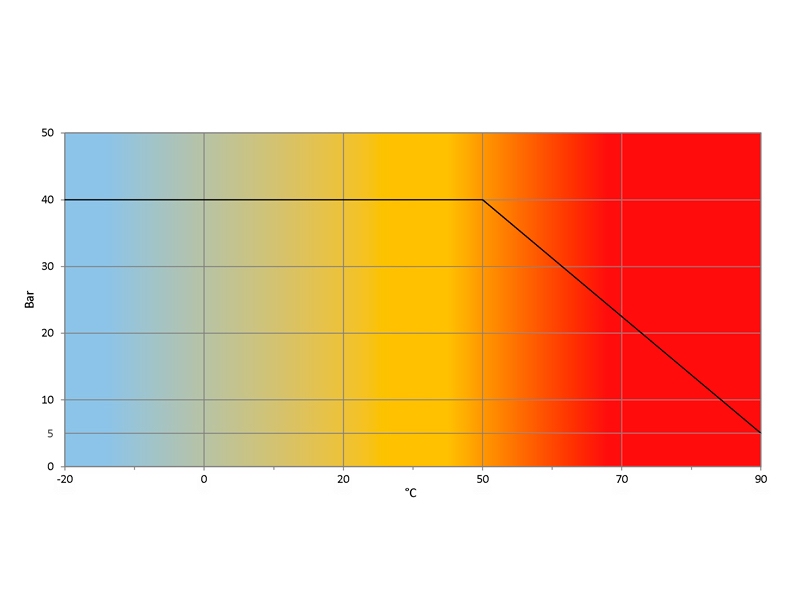

WORKING PRESSURE

For fuel gas 5 MOP.

TEMPERATURE LIMITS

For fuel gas from -20°C to +60°C.
For other uses from -20°C to + 90°C.
